Explosion-proof, zero leak, simple operation
Idling capability，Self suction， No complex control
Can transmit the adhesive liquid and large particles
low shearing，Not easy to destroy material structure
Diversity of material，no rotating parts，applicable to various erosive situations
By changing the air supply to adjust the flow delivery
By changing the air pressure to adjust the pump lift
Once over-loading ，the pump will automatically stop
No mechanical seal, easy maintenance, low cost，
Modularization of main valve and air motor. No broken, easy to disassemble and repair.
|
Max. Suction Lift
Suction height changes with the different combinations of ball, seat and the diaphragm materials.
|
dry 2.5m
wet 4.4m
|
|
Max. particle diamete
|
1.5mm
|
|

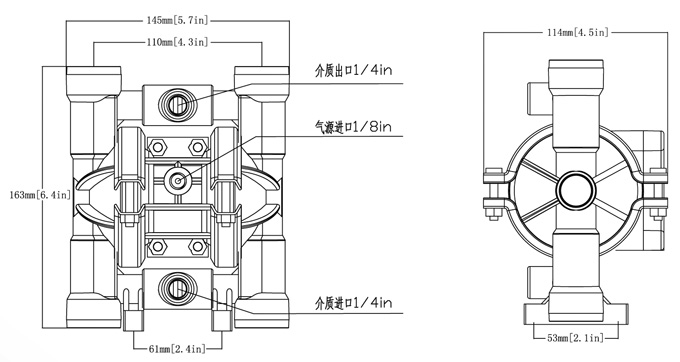

suction and discharge size
|
1/4in /Npt
|
|
Air inlet size
|
1/4in
|
|
Max. flow rate
|
18 l/min
|
|
Max. head
|
70m
|
|
Max. air inlet pressure
|
7bar
|
|
Max. air consumption
|
9.0scfm（0.252m³/min）
|
|
Main body material
|
PP、Acetal、PVDF
|
111
Explosion-proof, zero leak, simple operation
Idling capability，Self suction， No complex control
Can transmit the adhesive liquid and large particles
low shearing，Not easy to destroy material structure
Diversity of material，no rotating parts，applicable to various erosive situations
By changing the air supply to adjust the flow delivery
By changing the air pressure to adjust the pump lift
Once over-loading ，the pump will automatically stop
No mechanical seal, easy maintenance, low cost，
Modularization of main valve and air motor. No broken, easy to disassemble and repair.
|
Max. Suction Lift
Suction height changes with the different combinations of ball, seat and the diaphragm materials.
|
dry 2.5m
wet 4.4m
|
|
Max. particle diamete
|
1.5mm
|
|
suction and discharge size
|
1/4in /Npt
|
|
Air inlet size
|
1/4in
|
|
Max. flow rate
|
18 l/min
|
|
Max. head
|
70m
|
|
Max. air inlet pressure
|
7bar
|
|
Max. air consumption
|
9.0scfm（0.252m³/min）
|
|
Main body material
|
PP、Acetal、PVDF
|
